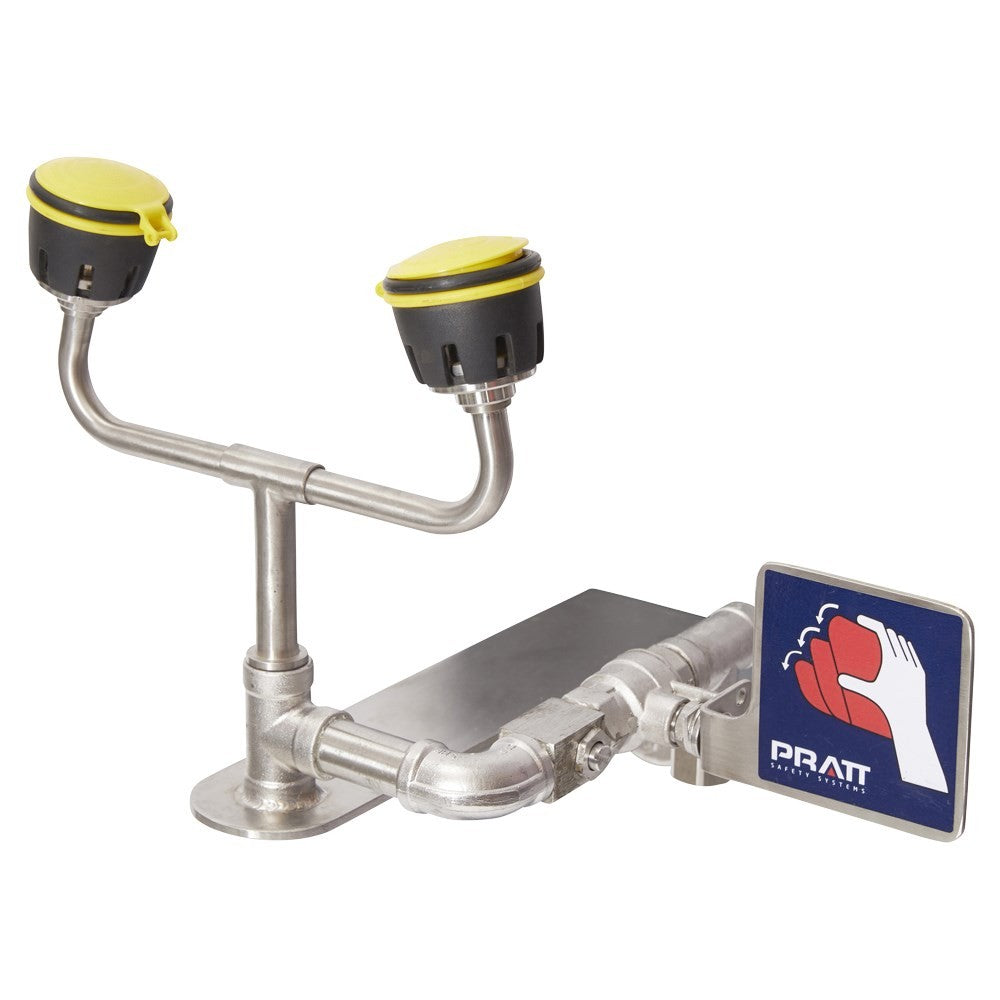

Wall Mounted Eye Wash - No Bowl Or Foot Treadle

Features

• All PRATT emergency showers, and eye wash stations are designed and manufactured in an ISO 9001 accredited facility, with full conformance to both AS4775 and ANSI Z358.1 standard
• AEROSTREAM technology delivers a gentle cascade of soft flow water to flush away any hazardous materials from the eyes and face.
• SWIRLTECH technology delivers a precise pattern and controlled flow rate of a large volume of flushing fluid, ensuring optimum decontamination when its needed most.
• FCR/FCA all showers & eyewashes come standard with Flow Control Regulators and/or Flow Control Adjuster.
• The shower FCR assists for simultaneous flow between the shower and eyewash to ensure minimum flow outputs are not compromised.
• The eyewash incorporates our FCA, allowing for the fine tuning of flow output.
• Eyewash pipework and fittings are 304SS
• No Bowl
• Hand Operated via Push Handle
• Stainless-Steel Eyewash Assembly with Rubber Cups
• ATechnicals Information for the Wall Mounted Eye Wash - No Bowl Or Foot Treadle
• INLET CONNECTION - 15mm BSPF
• WATER SUPPLY-LINE SIZE - 15mm *Must be hydraulically sized to meet requirements.
• MINIMUM PERFORMANCE REQUIREMENTS - 210kPa / 30PSI *Caution should be taken when pressure exceeds 550 kPa
• FLOW OUTPUT (AT MIN PERFORMANCE REQUIREMENT) - Shower 80 LPM Eye Wash 15 LPM Eye-Face Wash 30 LPM
• WEIGHT(KG) - 5
• DIMENSIONS(CM) - 31 X 26 X 14
