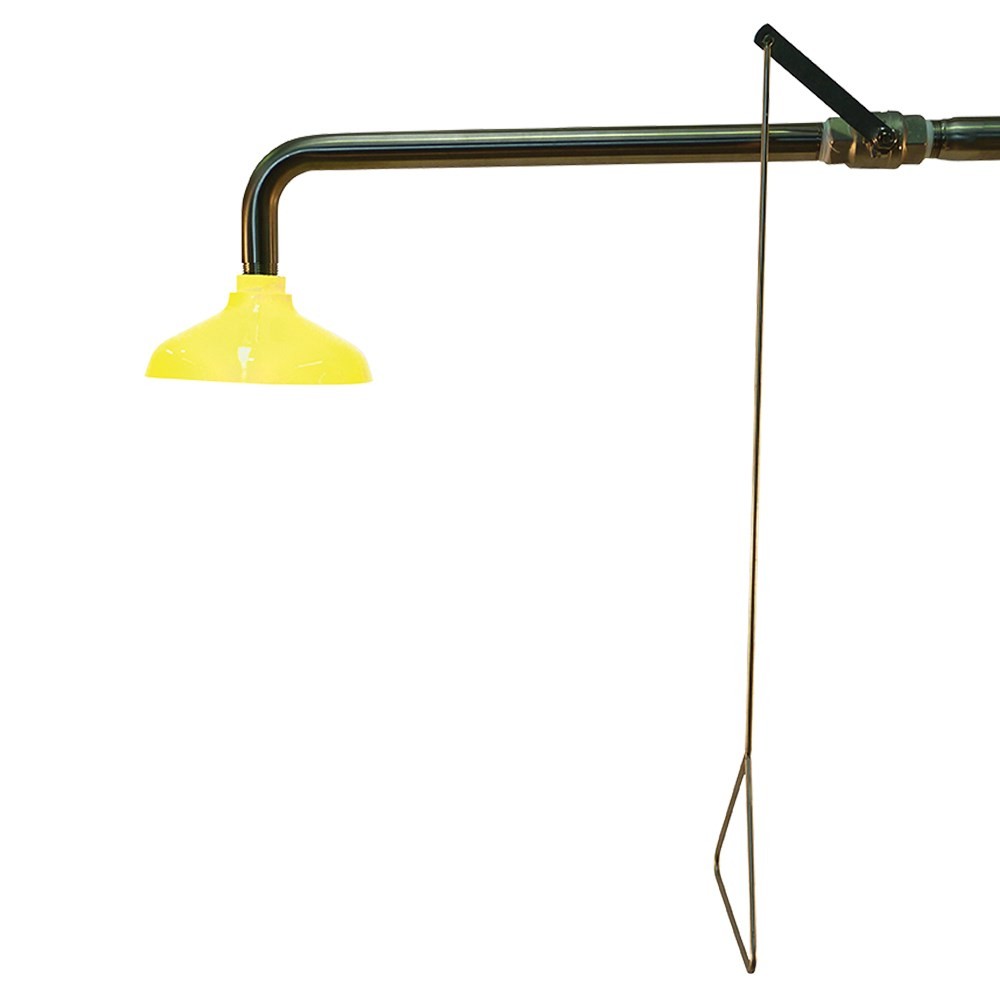

Shower Wall Mounted

 Shower Wall Mounted

All PRATT emergency showers and eye wash stations are designed and manufactured in an ISO 9001 accredited facility, with full conformance to both AS4775 and ANSI Z358.1 standards.

AEROSTREAM technology delivers a gentle cascade of soft flow water to flush away any hazardous materials from the eyes and face.

SWIRLTECH technology delivers a precise pattern and controlled flow rate of a large volume of flushing fluid, ensuring optimum decontamination when it's needed most.

Features

• FCR/FCA all showers & eyewashes come standard with Flow Control Regulators and/or Flow Control Adjuster.
• The shower FCR assists with simultaneous flow between the shower and eyewash to ensure minimum flow outputs are not compromised.
• The eyewash incorporates our FCA, allowing for the fine-tuning of flow output.
• Shower arm and fittings are 304SS
• ABS Chemical/Impact Resistant Shower Head
• Wall Mount
• Hand Operated Pull Rod
• Technical Specifications of the Shower Wall Mounted
• TECHNICAL INFORMATION:

• INLET CONNECTION: 25mm BSPM

• WATER SUPPLY-LINE SIZE: 25mm *Must be hydraulically sized to meet requirements.

• MINIMUM PERFORMANCE REQUIREMENTS: 210kPa / 30PSI *Caution should be taken when pressure exceeds 550 kPa

• FLOW OUTPUT (AT MIN PERFORMANCE REQUIREMENT): Shower 80 LPM Eye Wash 15 LPM Eye-Face Wash 30 LPM

• WEIGHT (KG): 4

• DIMENSIONS (CM): 65 X 27 X 14
