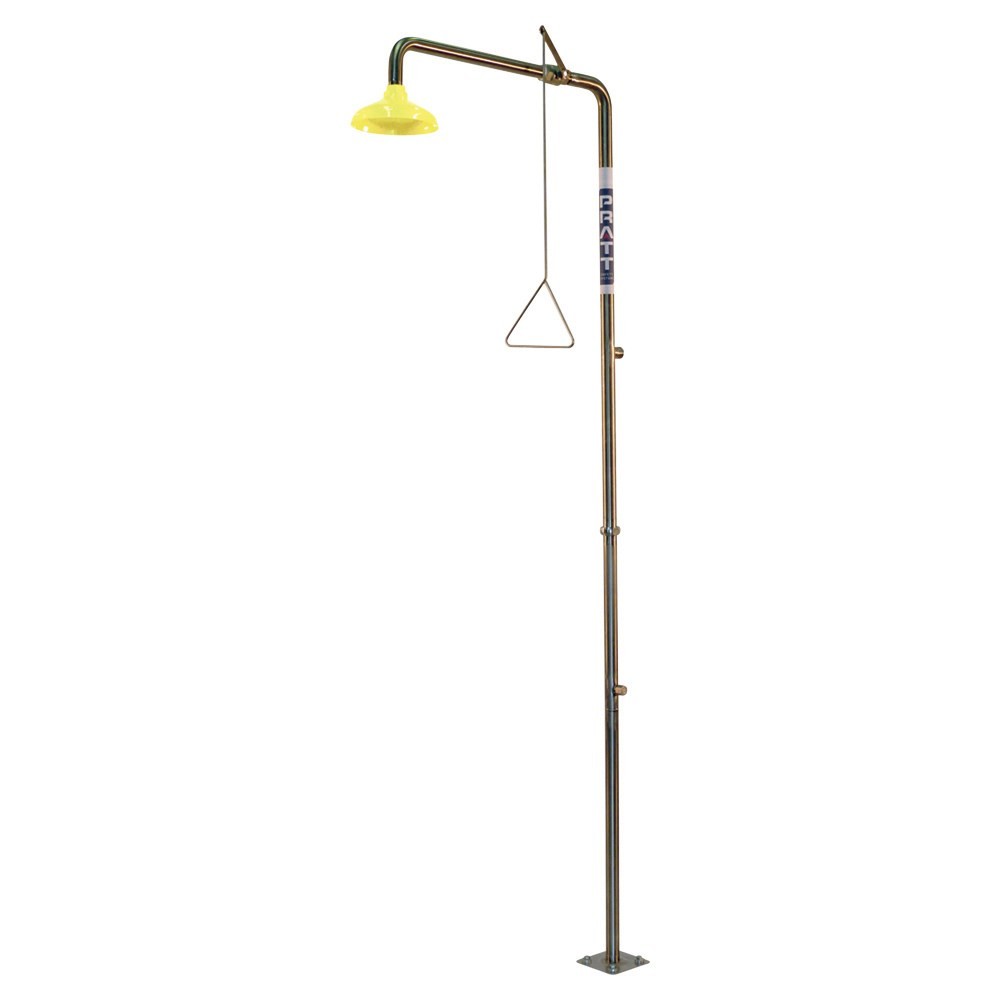

Shower Free Standing

Shower Free Standing

Features

• AEROSTREAM technology delivers a gentle cascade of soft flow water to flush away any hazardous materials from the eyes and face.
• SWIRLTECH technology delivers a precise pattern and controlled flow rate of a large volume of flushing fluid, ensuring optimum decontamination when it is needed most
• FCR/FCA all showers & eyewashes come standard with Flow Control Regulators and/or Flow Control Adjuster.
• The shower FCR assists for simultaneous flow between the shower and eyewash to ensure minimum flow outputs are not compromised.
• The eyewash incorporates our FCA, allowing for the fine-tuning of flow output.
• Shower stanchion and fittings are 304SS
• ABS Chemical/Impact Resistant Shower Head
• No Bowl
• Hand Operated via Pull Rod
• Technical Specifications of the Shower Free Standing
• TECHNICAL INFORMATION:
• INLET CONNECTION - 25mm BSPM
• WATER SUPPLY-LINE SIZE - 25mm *Must be hydraulically sized to meet requirements.
• MINIMUM PERFORMANCE REQUIREMENTS - 210kPa / 30PSI *Caution should be taken when pressure exceeds 550 kPa
• FLOW OUTPUT (AT MIN PERFORMANCE REQUIREMENT) - Shower 80 LPM Eye Wash 15 LPM Eye-Face Wash 30 LPM
• WEIGHT(KG) - 18
• DIMENSIONS(CM) - 122 X 19 X 37
