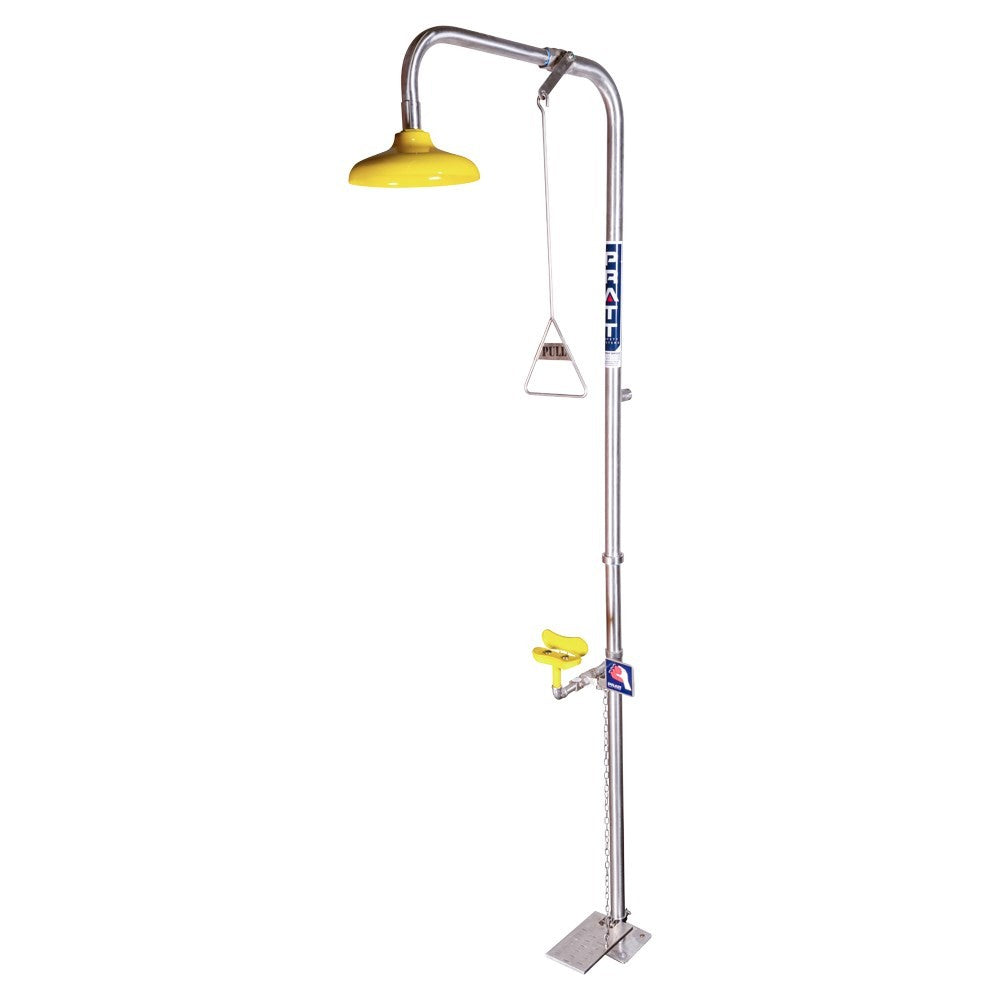

Combination Shower With Eye & Face Wash - No Bowl With Foot Treadle

 Combination Shower With Eye & Face Wash - No Bowl With Foot Treadle

The Combination Shower Pratt is a vital safety fixture that combines a shower head and eyewash station in one unit, enabling rapid response and decontamination in the event of chemical exposure or other emergencies. Its integrated design, high-visibility colour, and immediate accessibility make it an essential component in ensuring the safety and well-being of personnel working in potentially hazardous environments.

Compliance and Technology Features of the Combination Shower With Eye & Face Wash - No Bowl With Foot Treadle

All PRATT emergency showers and eye wash stations are designed and manufactured in an ISO 9001 accredited facility, with full conformance to both AS4775 and ANSI Z358.1 standard.

AEROSTREAM technology delivers a gentle cascade of soft flow water to flush away any hazardous materials from the eyes and face.

SWIRLTECH technology delivers a precise pattern and controlled flow rate of a large volume of flushing fluid, ensuring optimum decontamination when it is needed most.

.Features

• Shower stanchion and fittings are 304SS
• ABS Chemical/Impact Resistant Shower Head
• No Bowl
• Hand and Foot Operated via Push Handle, Foot Treadle and Pull Rod
• ABS Eye/Face Wash Nozzle Assembly
• Technical Information of the Combination Shower With Eye & Face Wash - No Bowl With Foot Treadle
• INLET CONNECTION - 25mm BSPM
• WATER SUPPLY-LINE SIZE - 25mm *Must be hydraulically sized to meet requirements.
• MINIMUM PERFORMANCE REQUIREMENTS - 210kPa / 30PSI *Caution should be taken when pressure exceeds 550 kPa
• FLOW OUTPUT (AT MIN PERFORMANCE REQUIREMENT) - Shower 80 LPM Eye Wash 15 LPM Eye-Face Wash 30 LPM
• WEIGHT(KG) - 18
• DIMENSIONS(CM) - 122 X 19 X 37
