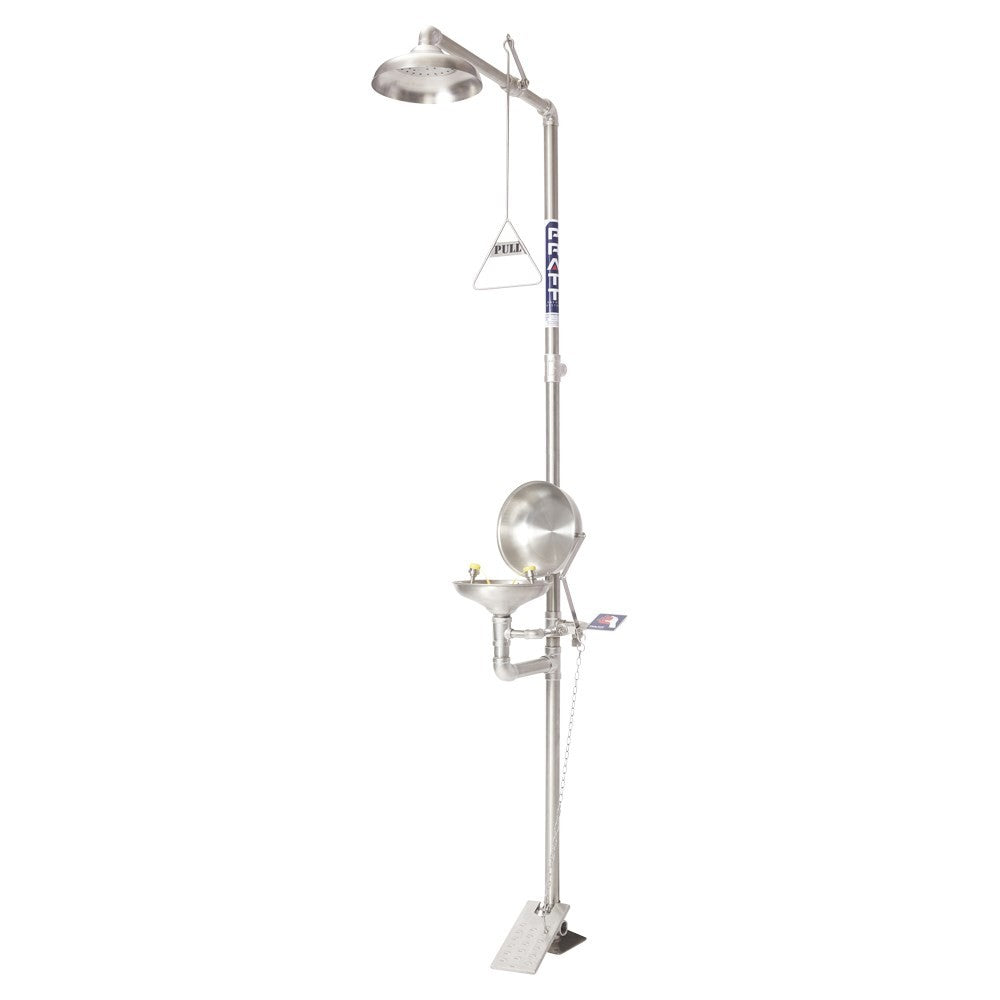

Combination Shower With Eye Wash, With Bowl & Foot Treadle - Flip Top Lid

Combination Shower With Eye Wash, With Bowl & Foot Treadle - Flip Top Lid

The Combination Shower Pratt is a vital safety fixture that combines a shower head and eyewash station in one unit, enabling rapid response and decontamination in the event of chemical exposure or other emergencies. Its integrated design, high-visibility colour, and immediate accessibility make it an essential component in ensuring the safety and wellbeing of personnel working in potentially hazardous environments.

Features

• All PRATT emergency showers and eye wash stations are designed and manufactured in an ISO 9001 accredited facility, with full conformance to both AS4775 and ANSI Z358.1 standard.
• AEROSTREAM technology delivers a gentle cascade of soft flow water to flush away any hazardous materials from the eyes and face.
• SWIRLTECH technology delivers a precise pattern and controlled flow rate of a large volume of flushing fluid, ensuring optimum decontamination when its needed most
• FCR/FCA all showers & eyewashes come standard with Flow Control Regulators and/or Flow Control Adjuster.
• The shower FCR assists for simultaneous flow between the shower and eyewash to ensure minimum flow outputs are not compromised.
• The eyewash incorporates our FCA, allowing for the fine tuning of flow output.
• Shower stanchion and fittings are 304SS
• 304 Stainless Steel Shower Head
• Stainless Steel Eye Wash Bowl
• Hand and Foot Operated via Push Handle, Foot Treadle and Pull Rod
• Stainless Steel Eyewash assembly with Plastic Dust Caps
• Flip Top Lid for dust protection
• INLET CONNECTION: 25mm BSPM
• WATER SUPPLY-LINE SIZE: 25mm *Must be hydraulically sized to meet requirements.
• MINIMUM PERFORMANCE REQUIREMENTS: 210kPa / 30PSI *Caution should be taken when pressure exceeds 550 kPa
• FLOW OUTPUT (AT MIN PERFORMANCE REQUIREMENT): Shower 80 LPM Eye Wash 15 LPM Eye-Face Wash 30 LPM
• WEIGHT(KG): 22
• DIMENSIONS(CM): 79 X 30 X 35
