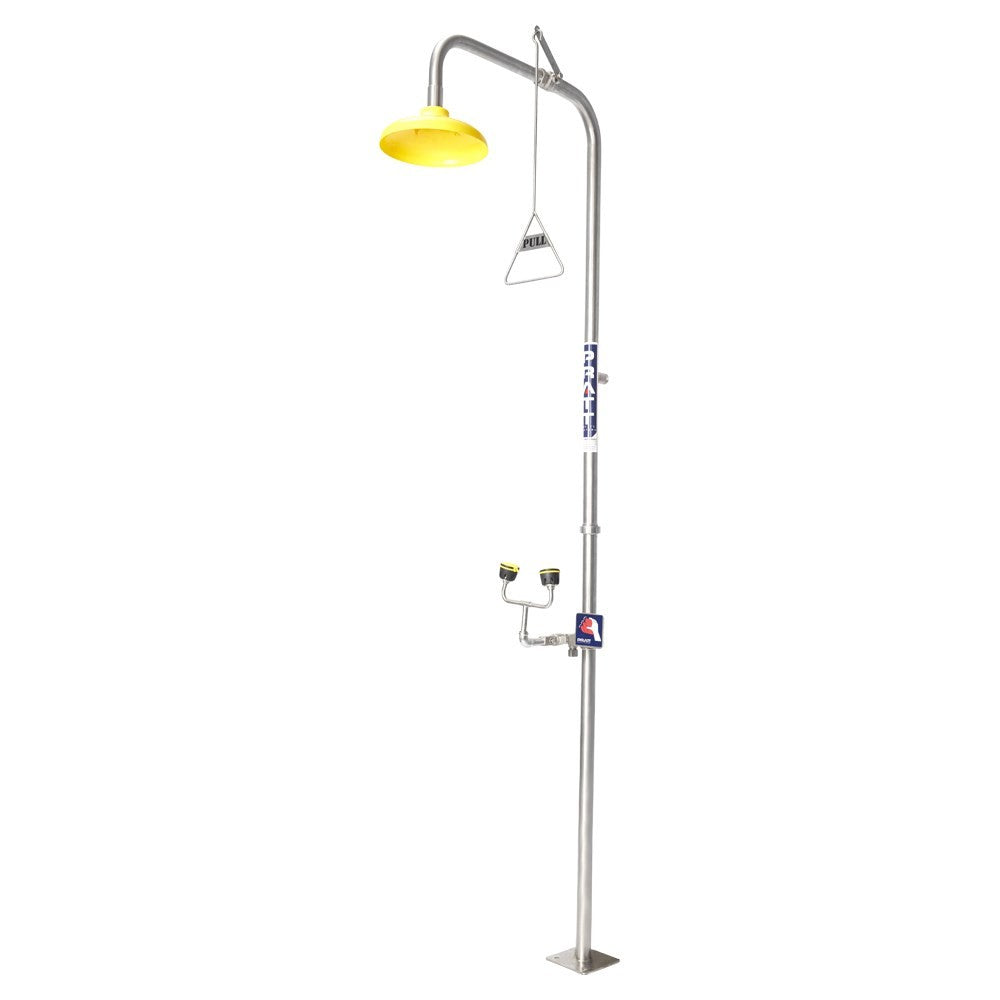

Combination Shower With Eye Wash - No Bowl Or Foot Treadle

Combination Shower With Eye Wash - No Bowl Or Foot Treadle

The Combination Shower Pratt is a vital safety fixture that combines a shower head and eyewash station in one unit, enabling rapid response and decontamination in the event of chemical exposure or other emergencies. Its integrated design, high-visibility colour, and immediate accessibility make it an essential component in ensuring the safety and well-being of personnel working in potentially hazardous environments.

Features

• AEROSTREAM technology delivers a gentle cascade of soft flow water to flush away any hazardous materials from the eyes and face.
• SWIRLTECH technology delivers a precise pattern and controlled flow rate of a large volume of flushing fluid, ensuring optimum decontamination when it's needed most.
• Features of the Combination Shower With Eye Wash - No Bowl Or Foot Treadle
• FCR/FCA all showers & eyewashes come standard with Flow Control Regulators and/or Flow Control Adjuster.
• The shower FCR assists for simultaneous flow between the shower and eyewash to ensure minimum flow outputs are not compromised.
• The eyewash incorporates our FCA, allowing for the fine-tuning of flow output.
• Construction of the Combination Shower With Eye Wash - No Bowl Or Foot Treadle
• Shower stanchion and fittings are 304SS
• ABS Chemical/Impact Resistant Shower Head
• No Bowl
• Hand Operated via Push Handle and Pull Rod
• Stainless-Steel Eyewash Assembly with Rubber Cups
• Technical Information of the Combination Shower With Eye Wash - No Bowl Or Foot Treadle
• INLET CONNECTION: 25mm BSPM
• WATER SUPPLY-LINE SIZE: 25mm *Must be hydraulically sized to meet requirements.
• MINIMUM PERFORMANCE REQUIREMENTS: 210kPa / 30PSI *Caution should be taken when pressure exceeds 550 kPa
• FLOW OUTPUT (AT MIN PERFORMANCE REQUIREMENT): Shower 80 LPM Eye Wash 15 LPM Eye-Face Wash 30 LPM
• WEIGHT(KG): 18
• DIMENSIONS(CM): 122 X 19 X 37
